Phase Tester

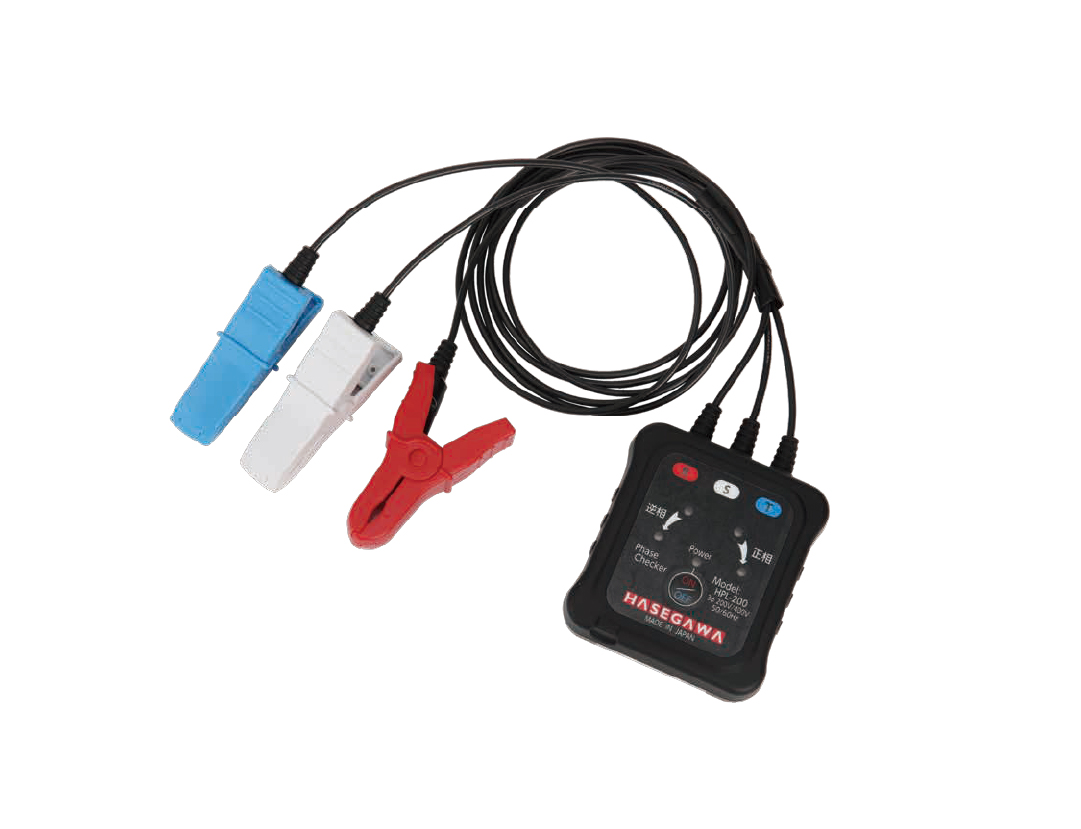

HPL-200 Low Voltage Phase Checker Insulated Wire Clamping Type
AC
80～600V（Three-Phase）

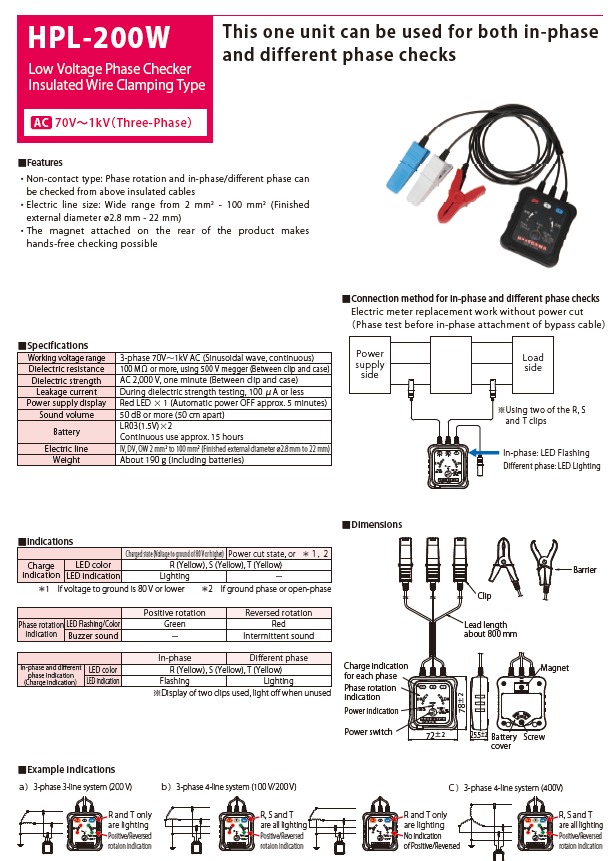

View the product catalogue
This one unit can be used for both in-phase and different phase checks
-
Live-part display function: Differentiates charging status (voltage to ground of 80 V or higher) and clip connection failure
-
Non-contact type: Phase rotation and in-phase/different phase can be checked from above insulated cables
-
Electric line size: Wide range from 2 mm2 - 100 mm2 (Finished external diameter ø2.8 mm - 22 mm)
-
The magnet attached on the rear of the product makes hands-free checking possible

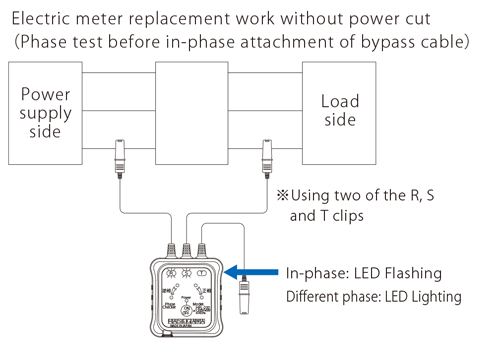

Connection method for in-phase and different phase checks

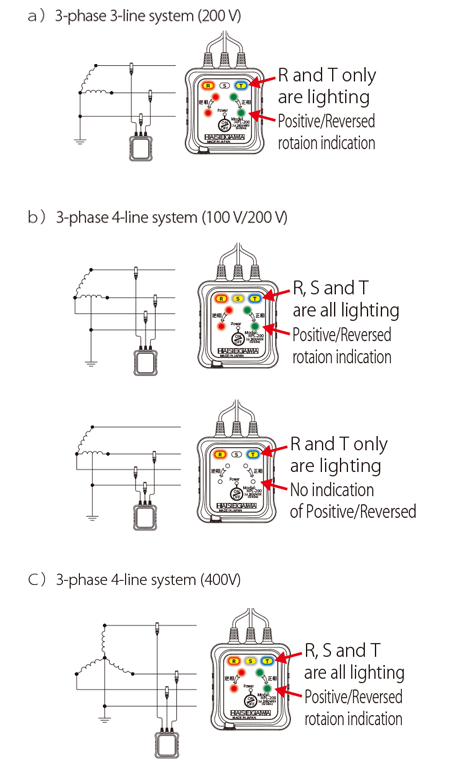

Example indications

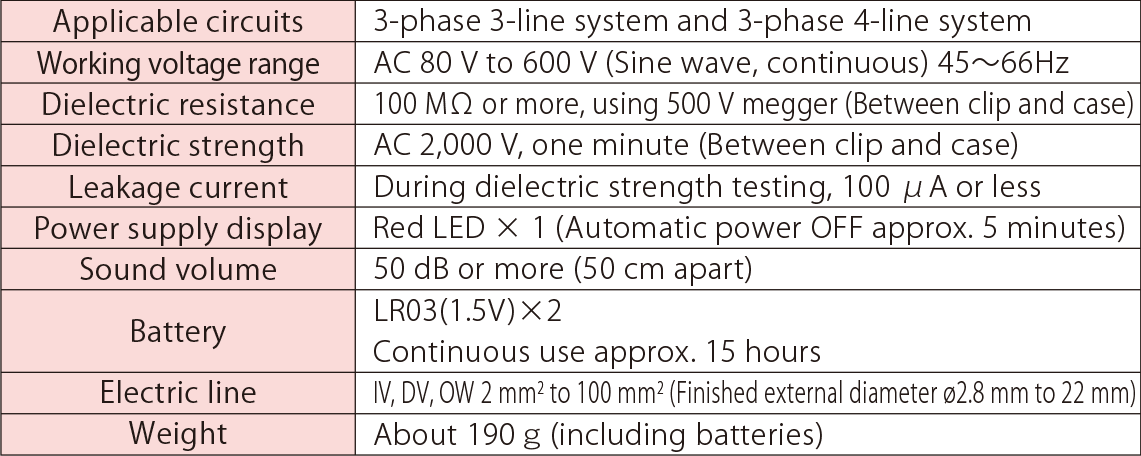

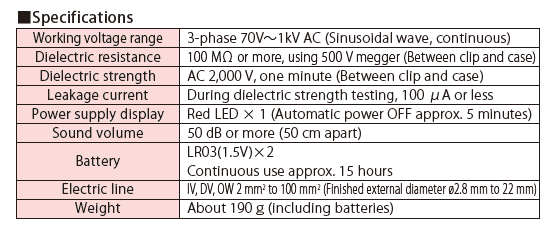

Specifications

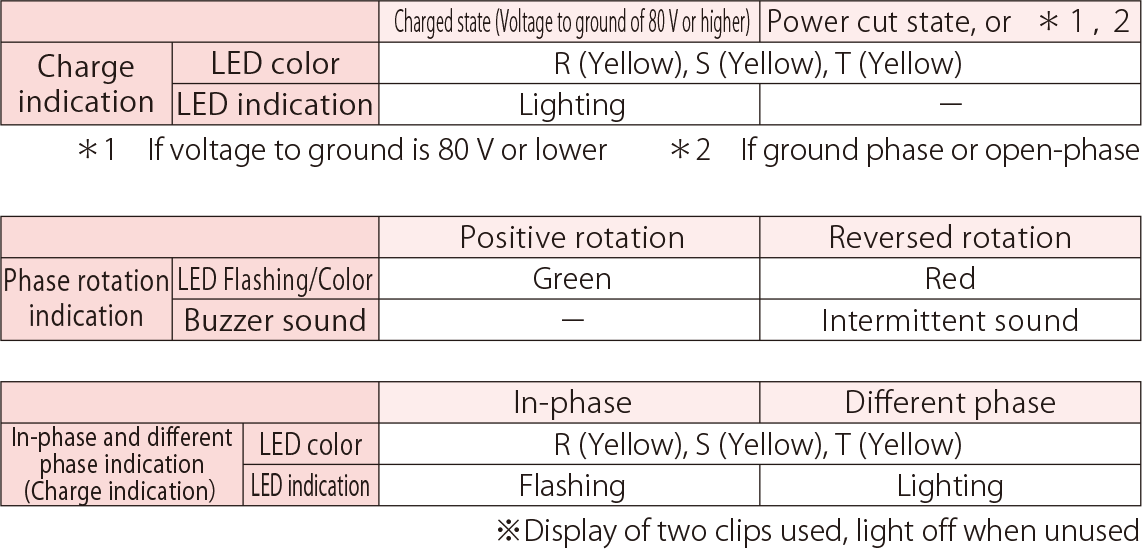

Indications
